The low-energy route for salts whose solubility rises steeply with temperature: adipic acid, potassium nitrate, PTA, xylitol.
Heat removal lowers solubility and deposits product with low energy input — the route for salts whose solubility rises steeply with temperature: adipic acid, boric acid, potassium nitrate, PTA, xylitol. The temperature differential across the cooling surface is held low to avoid nucleation bursts.
Reference ranges under typical operating conditions — the applicability of every number is conditional on the solubility curve of your salt.
Heat is removed through a cooling surface — jacket, coil or external exchanger. As temperature falls, solubility drops and the liquor crosses saturation; growth proceeds on suspended crystals.
Hot saturated feed → Crystallizer (cooling surface / external exchanger) → Slurry → Solid-liquid separation → Crystals + cold mother liquor
The cooling-surface ΔT is the critical design variable: too large a ΔT spikes local supersaturation at the wall, producing fines and scale.
Feed arrives at or near saturation — pre-concentrated by evaporation where the process needs it (a staged hybrid).
Coolant — cooling water, chilled water or chilled brine — removes heat through jacket, coil or external exchanger.
Falling temperature drops solubility; the driving force is spent on crystal growth, with the surface ΔT held at ≤5–8 °C per stage.
Crystals discharge to centrifuge or filter; mother liquor recycles or purges for impurity control.
The two classic routes divided along the solubility curve, the thermal sensitivity of the product, and whether recoverable condensate matters.
Route mapping from the crystallizer-type technical reference. If the solubility curve is only moderately temperature-sensitive, a staged evaporation-then-cooling hybrid often beats either single method on yield, energy and PSD.
Both exploit temperature-dependent solubility — the difference is how heat leaves the system, and that decides which streams each variant tolerates.
Chemical systems with strongly temperature-dependent solubility, from the selection matrix.
Chemical-route mapping from the crystallizer-type technical reference; final selection requires solubility data, impurity profiling and crystallization trials.
Cooling crystallization is a Dimension C supersaturation method — it pairs with any Dimension D growth configuration (DTB, Oslo or agitated vessels are the typical carriers). Crystal size distribution, purity and yield depend on the solubility curve, cooling profile, seeding strategy and impurity profile. All figures are indicative ranges for preliminary screening, not a process guarantee.
Recurring questions from engineers weighing cooling against the alternatives.
Because supersaturation is generated at the coldest point — the wall. A large surface ΔT spikes local supersaturation, causing nucleation bursts, fines and wall incrustation. Staged cooling with small per-stage ΔT keeps the driving force inside the growth regime.
When the liquor would foul a cooling surface, or when the product is thermal-sensitive. Vacuum cooling flashes part of the water adiabatically — cooling happens in the bulk with no surface to foul. The trade is vacuum-system and condensation duty. See Vacuum Cooling Crystallization.
Not as a rule — the outputs are crystals and mother liquor. If condensate recovery matters (ZLD duty), the evaporative route is the one that produces recoverable condensate.
Yes — DTB and Oslo bodies carry continuous cooling crystallization at fertilizer and fine-chemical scale; agitated vessels cover batch and specialty duty. The method constrains neither mode.
Sodium acetate crystallizes by cooling, not evaporation: supersaturation controlled through temperature, concentration, cooling rate and agitation, with continuous operation delivering pharma and food-grade consistency.

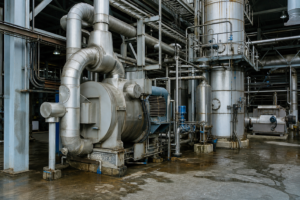

MVR evaporation plus OSLO cooling crystallization for potassium nitrate: handling 10-15C boiling point elevation, chloride-grade materials, 20-40 mesh 99.9% crystals, and NaCl salt-out in one coupled train.

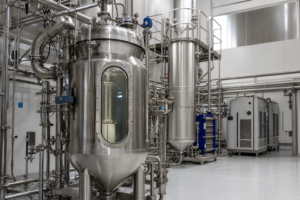

Crystallizing vitamin C (ascorbic acid) from concentrated fermentation-purification liquor is a crystal-size and stability problem: the product oxidizes in the presence of heat, air and alkali, and careless supersaturation control

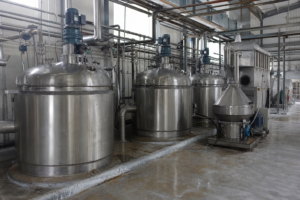

Engineering guide to continuous cooling crystallization of tartaric acid: solubility-driven staging, DTB/Oslo vessel selection, mother-liquor purge strategy, and the failure modes that decide product grade.

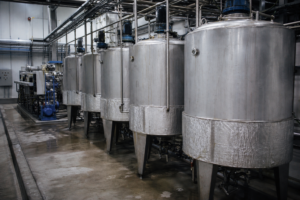

Dry fractionation of coconut oil explained: feed conditioning at 60-70C, programmed cooling crystallization from 40C to 15-25C, membrane filter press separation of stearin and olein, and the cooling-system design and
