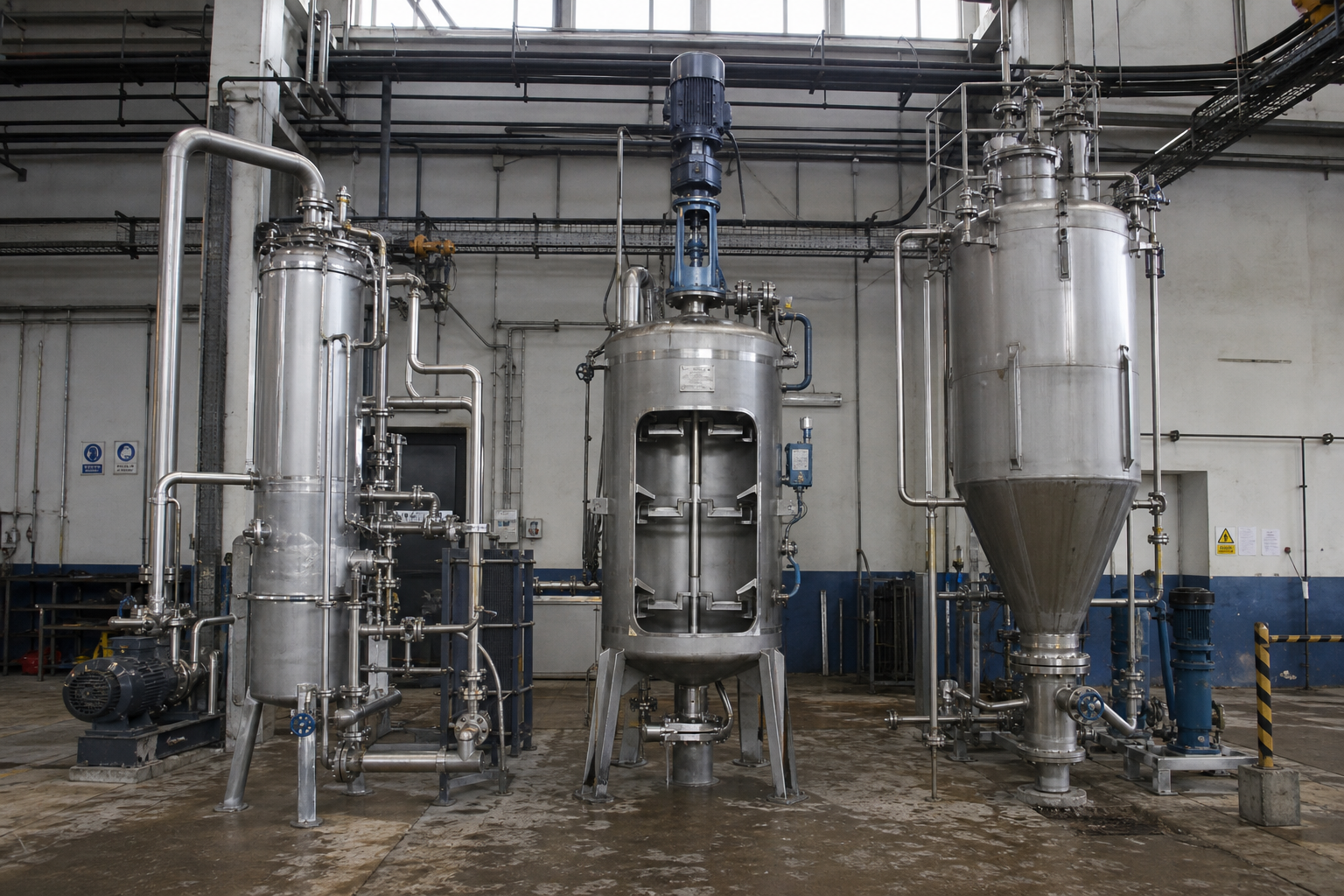

Every crystallization plant is two orthogonal decisions. Dimension C decides how supersaturation is generated — evaporative, cooling, vacuum flash, reaction or hybrid, set by the solubility curve of your system. Dimension D decides how crystals grow — forced-circulation, DTB or Oslo, set by target particle size and purity. Master both and the flowsheet follows.
Reference ranges under typical operating conditions — where your project lands inside each range depends on the solubility behavior of your system in the method table and the configuration table.
A crystal only grows when the mother liquor is supersaturated. The plant is an exercise in generating that supersaturation, holding it inside the metastable zone, and giving crystals time, suspension and classification to grow.
Supersaturation is generated in a loop separated from the growth volume wherever the configuration demands it — the two functions never have to share one vessel.

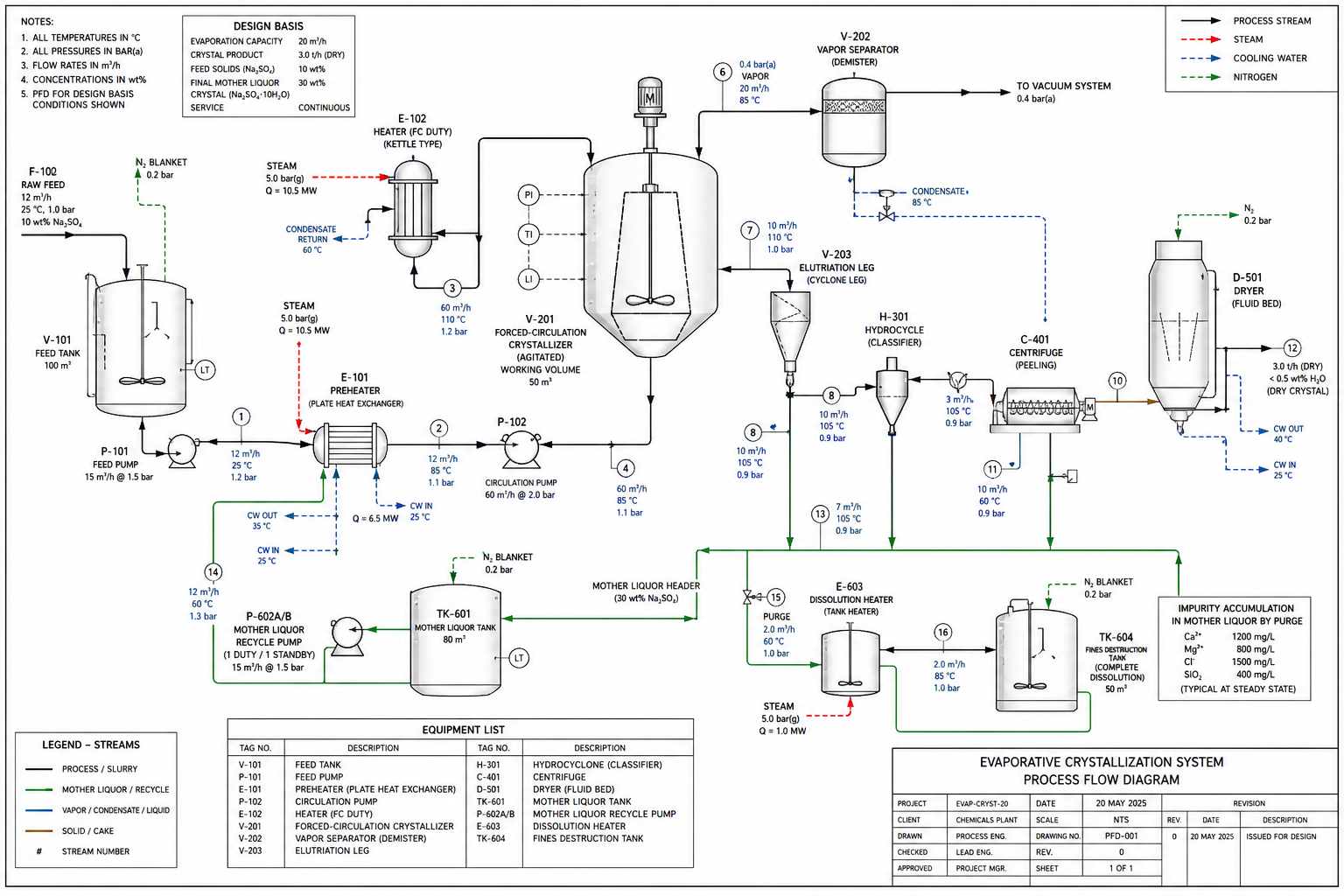

Feed is pre-concentrated by evaporation until it approaches the saturation line — often in an MVR or multi-effect front end.
Dimension C — remove solvent (evaporative), remove heat (cooling), flash under vacuum, react reagents, or combine routes. The solubility curve decides.
Dimension D — FC, DTB or Oslo holds the suspension, controls nucleation and classifies product. Fines are removed or destroyed; coarse product is harvested.
Centrifuge and wash remove mother liquor; the dryer takes free moisture below 0.1–0.5% depending on product grade specification.
The solubility-vs-temperature curve of your system decides which route can reach the target yield — and which routes are physically closed. Method selection precedes equipment selection, always.
Concentrate at controlled temperature until the liquor crosses saturation. The default route where the solubility curve is flat or the feed is already hot — and the only route that works for inverse-solubility systems paired with reaction crystallization.
Chill the saturated liquor so solubility drops and crystals appear. Only viable where the curve is steep; per-stage ΔT is capped to stay inside the metastable zone and limit nucleation.
Hot saturated liquor flashes adiabatically at reduced pressure — part of the solvent evaporates, the liquor self-cools. The standard route for fermentation products where any cooling surface would foul.
Two reagents meet and the product leaves solution as a solid — the only route for inverse-solubility salts such as lithium carbonate, which precipitates as carbonate meets lithium above 90 °C.
Evaporate part of the solvent and cool the rest of the way along the curve — used where one route alone cannot reach both the yield target and the particle-size target simultaneously.
Dimension C (how supersaturation is generated) is orthogonal to Dimension D (how crystals grow). Any documented method pairs with any documented configuration — the pair is justified by the heat and mass balance.
Three configurations cover the industrial size range. Which one you land on is set by target particle size, purity spec and how much supersaturation the liquor can carry without crashing.
Circulation velocity and supersaturation level move inversely: FC runs fast enough to suspend through high supersaturation, Oslo runs slow with supersaturation held sub-metastable in the fluidized bed. Figures reflect typical industrial ranges observed in operating references; project-specific selection requires solubility data, target PSD distribution and purity specification analysis.
Evaporation and concentration of lithium precipitation mother liquor recovers residual lithium, crystallizes sodium sulfate by-product, and returns clean condensate — the MVR-based route to closing the lithium and sodium balance.
Evaporation–crystallization ZLD for SCR denitration catalyst manufacturing and regeneration wastewater: removing 95%+ of salts, vanadium and tungsten in one phase-change step, returning reusable condensate and concentrating V/W into a recoverable
Representative configuration of a 32 m3/h sodium sulfate crystallization train at a Chinese wastewater plant, combining MVR evaporation crystallization with freeze crystallization and drying to deliver T/CCT 001-2019 Grade-A first-class
Engineering guide to continuous cooling crystallization of tartaric acid: solubility-driven staging, DTB/Oslo vessel selection, mother-liquor purge strategy, and the failure modes that decide product grade.
Sodium phosphate crystallization by hydrate: trisodium dodecahydrate cooling routes, the 73C phase boundary, evaporative routes for monosodium, and phosphorus recovery from wastewater.
How crystalline MAP is produced: neutralize wet-process phosphoric acid with ammonia, concentrate in falling-film and forced-circulation evaporators, crystallize in FC or DTB/Oslo crystallizers, and cut steam cost with MVR. Covers
Because Dimension C and Dimension D are orthogonal, every plant is one method from column C paired with one configuration from column D — four documented combinations cover the majority of field deployments.
Documented C × D Combinations
Each pairing exists because the chemistry demanded it — not because one configuration is universally superior:
If your system does not appear here, the method still comes from the solubility curve and the configuration still comes from the PSD target — the pairing is engineered, never catalogued.
Six systems with documented operating references. The route and configuration columns are the C and D decisions this page has built — read any row as a worked example of the two-dimension method.
Routes and configurations shown are documented operating practice, not exclusive choices. Figures reflect typical industrial ranges; project-specific selection requires solubility data and heat/mass balance.
Purity and moisture spec are won or lost after the crystallizer. Three downstream stages turn a slurry into saleable product.
Pusher, peeler or screen-bowl centrifuges dewater the slurry; a wash stage displaces mother liquor from crystal surfaces. Impurity carry-over is set here, not in the crystallizer.
Dryer selection follows crystal size and thermal sensitivity: fluid-bed for granular product, flash for fine. Overdrying wastes energy; underdrying cakes the product in storage.
Mother liquor returns to the front end until impurities concentrate to their limit — then a controlled purge keeps product purity stable. The purge ratio is a design variable, not an afterthought.
Find your situation below — the answer names both the Dimension C method and the Dimension D configuration. The full side-by-side energy comparison lives on Compare Technologies.
Indicative ranges aggregated from published supplier specifications of crystallizer and crystallization-train builders (FC, DTB and Oslo bodies; evaporative, cooling and vacuum routes). For route screening only — not a process guarantee for any specific project.
Ranges aggregate published specifications from crystallizer and crystallization-train builders (FC, DTB, Oslo and continuous-cooling executions). Figures are supplier-published indicative values for screening; a project number requires your solubility data across the operating range, target PSD and purity specification.
Each module is selected on feed chemistry and duty — the envelope column gives published operating ranges per module type, not a single-project specification.
Module envelopes follow the published supplier data above; supersaturation set point, fines-loop rate and purge are project-specific and set at design.
Representative configuration of a 10 t/h TVR-driven four-effect falling-film train with forced-circulation crystallization producing ammonium sulfate at a battery-materials site in East China (Anhui).
Representative configuration of a 32 m3/h sodium sulfate crystallization train at a Chinese wastewater plant, combining MVR evaporation crystallization with freeze crystallization and drying to deliver T/CCT 001-2019 Grade-A first-class
Integrated BPA wastewater treatment with low-temperature MVR evaporation and crystallization: phenol recovery first, salt recovery second, reusable condensate and compliant solids for epoxy resin and polycarbonate plants.
Evaporation and crystallization systems for erythritol, sorbitol, and allulose: MVR falling film concentration to Maillard control, melt versus cooling crystallization routes, and viscosity boundaries.
Representative configuration of a 2 t/h plate-type MVR evaporation crystallization system in Vietnam recovering sodium sulfate crystal from a dilute hydrometallurgy raffinate carrying 2.5% Na2SO4 and 7,500 ppm COD.
Continuous MVR evaporation and crystallization upgrades PMIDA (N-phosphonomethyl iminodiacetic acid) production for the IDA glyphosate route: over 80% energy savings, stable crystal quality and treatment for 5-6 tons of wastewater
Crystal size, purity and moisture figures on this page are indicative ranges from operating references, not a process guarantee. Real selection requires your solubility data across the operating temperature range, target PSD distribution, purity specification and utility context. Screen against measured data, not catalog figures.
Recurring questions from engineers screening a crystallization route for the first time.
By target particle size and impurity tolerance. FC delivers d50 0.2–0.8 mm at 2–3 m/s circulation and tolerates the highest supersaturation — the scaling-brine workhorse. DTB delivers 0.5–2.0 mm with an elutriation leg destroying fines — fertilizer and battery chemicals. Oslo delivers 1–5 mm by fluidized-bed classification at ≤1–2 g/L supersaturation — coarse premium product. Purity spec then confirms or vetoes the shortlist.
When the solubility curve is flat — cooling barely reduces solubility, so yield collapses and the energy spent on refrigeration buys nothing. Then evaporative crystallization (or vacuum flash, which cools and concentrates simultaneously) is the only route to the yield target. Adipic acid sits at the opposite extreme: 2 to 160 g/L from 20 to 90 °C, where cooling is the natural route.
Li₂CO₃ has an inverse solubility curve — it is less soluble hot than cold, so neither cooling nor vacuum flash can precipitate it from a hot pregnant liquor. Sodium carbonate is dosed into the lithium-bearing solution above 90 °C, and the product leaves solution as it forms. DTB with fines destruction holds the particle size inside the battery-grade window.
Yes — and it usually should. The evaporation front end (Dimension A) pre-concentrates to near saturation; the crystallizer (Dimensions C and D) then generates supersaturation and grows product. MVR pre-concentrator plus FC crystallizer back end is a documented ZLD pattern; the energy strategy and the crystallization decisions are orthogonal and pair freely. See the ZLD solution line.
Three levers in sequence: fines control in the crystallizer (DTB elutriation removes the impurity-rich fine fraction), wash displacement on the centrifuge (clean wash liquor displaces mother film from crystal surfaces), and mother-liquor purge strategy (impurities never concentrate past their limit). The dryer contributes nothing to purity — it only protects what the upstream stages won.
