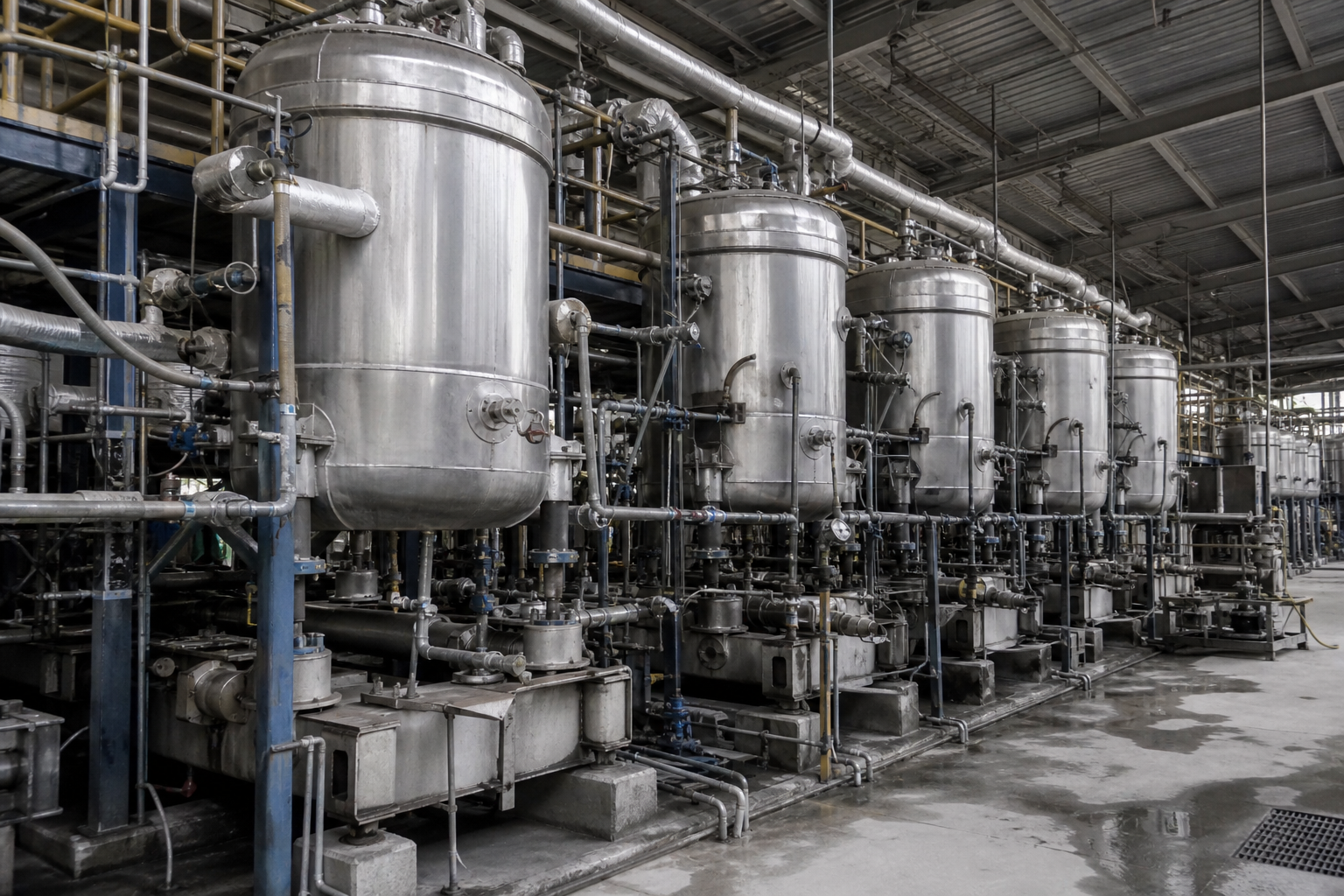

Zero Liquid Discharge is a capital-intensive commitment. Before specifying equipment, verify whether one or more of these plant-specific drivers apply to your stream.
Tightening limits on TDS, COD, heavy metals (Cr, Ni, As) and ammoniacal nitrogen make conventional biological or membrane treatment insufficient. ZLD removes the compliance ceiling rather than fighting it.
Water-stressed sites need condensate recovery for cooling-tower or process makeup. ZLD turns high-TDS wastewater into a reclaimed water source.
When separated salts can be sold or reused (NaCl for chlor-alkali feed, Na₂SO₄ for detergent or viscose), selective crystallization shifts the economics versus mixed-salt hazardous disposal.
Constrained site area, limited steam header capacity, or restricted electrical headroom for an MVR compressor push plants toward modular skid-mounted ZLD with a defined utility envelope.
Representative configuration of a 32 m3/h sodium sulfate crystallization train at a Chinese wastewater plant, combining MVR evaporation crystallization with freeze crystallization and drying to deliver T/CCT 001-2019 Grade-A first-class
For rare earth mines whose water problem is hardness, silica and moderate dissolved salts at large flow, the workable route before any thermal ZLD is membrane concentration with engineered softening:
Representative configuration of a 33 t/h train in Central China treating ammonium chloride wastewater from cobalt tetroxide precursor production with MVR evaporation and forced-circulation crystallization recovering NH4Cl as a saleable
Battery-grade lithium carbonate plants built on MVR evaporation, hot precipitation crystallization, sodium sulfate by-product recovery and rotary drying – 30,000 TPA reference practice.
Representative configuration of a 30 t/h MVR plate falling film evaporation train concentrating by-product sodium sulfide liquor from barium sulfate production at an inorganic-chemical plant in North China.
Representative configuration of a 1,200 t/d silica-production wastewater zero-liquid-discharge plant in East China: 50 t/h double-effect evaporation with salt separation in 2205 duplex stainless construction, integrating 200,000 Nm³/h waste-heat recovery.
A complete ZLD system is not a single evaporator or crystallizer. It is a chain of unit operations, each selected around your feed composition, target salts and site utilities.
Pre-treatment → Pre-concentration → Evaporative concentration → Crystallization → Solids separation → Condensate recovery
Each block is sized and configured from your feed characterization — TDS, organics, hardness, chloride profile and scaling precursors.
pH adjustment, alkaline softening (Ca²⁺, Mg²⁺ removal), advanced oxidation for COD, and filtration to protect downstream heat exchangers from scaling and fouling.
High-pressure RO, softening chemistry or falling-film evaporation to lift TDS from 1–5% to 8–15% and reduce thermal duty on the evaporator.
MVR (15–25 kWh / t water) or multi-effect (0.25–0.40 t steam / t water) forced-circulation evaporation to approach saturation under controlled ΔT ≤ 10 °C.
Forced-Circulation (FC, 0.2–0.8 mm), DTB (0.5–2 mm) or OSLO (1–5 mm) crystallizer — selected by salt system, scaling risk and target crystal size.
Pusher, peeler or scroll centrifuge with wash stage to produce handleable salt cake (> 95% solids) and clean centrate returned to the crystallizer.
Condensate polishing (ion exchange or activated carbon) to reach process-water reuse specs, closing the water loop and recovering 85–95% of feed as clean condensate.
High-salinity wastewater is rarely a single salt. Process selection depends on which salts dominate, what organics are present and whether heavy metals coexist.
Typical mapping only — final material and configuration selection depends on feed characterization (full ionic profile, organics, hardness) and site utility conditions.
Three equipment families carry most of the ZLD duty. Each is configured around your feed composition, not selected from a catalog.

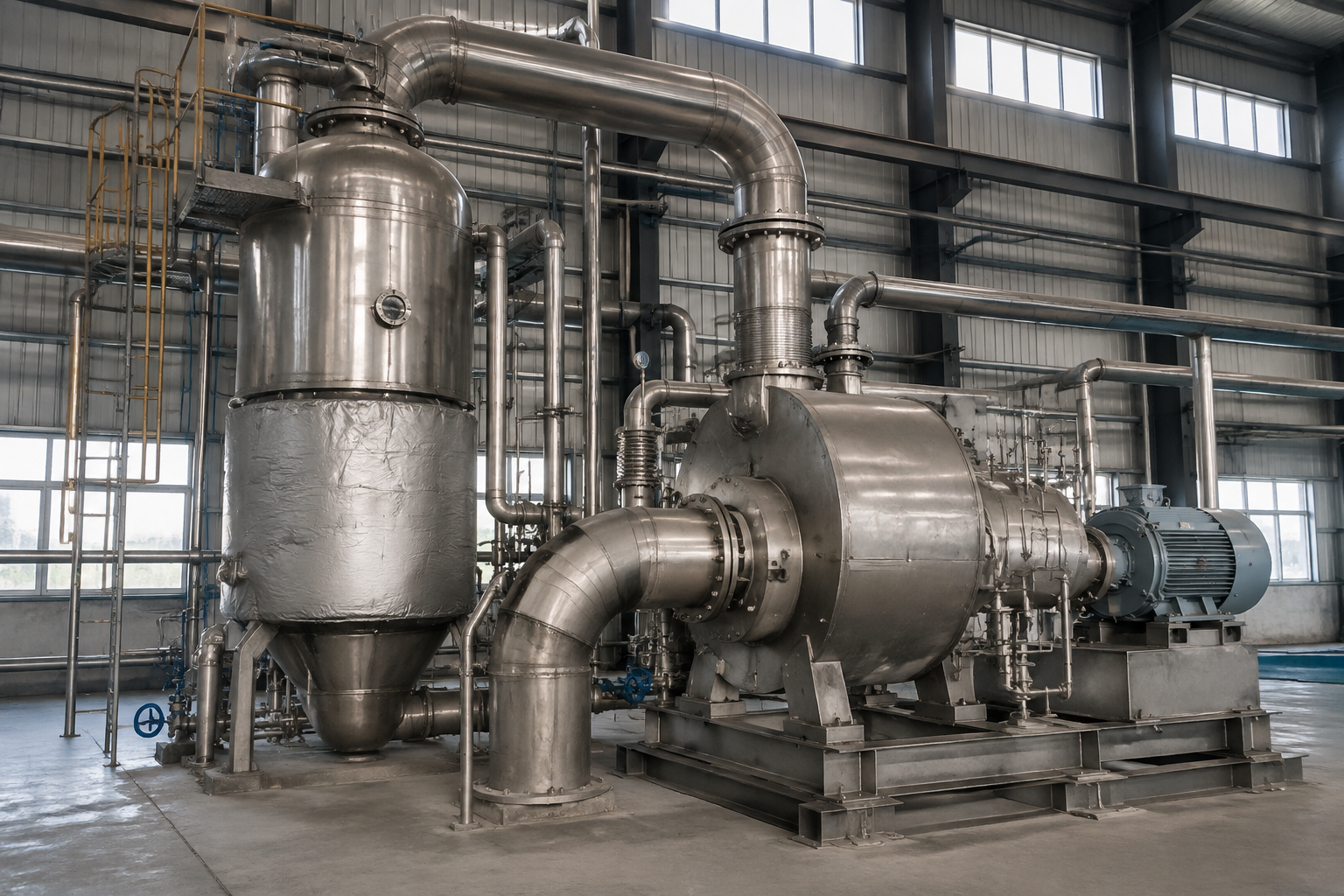

Mechanical vapor recompression upgrades secondary vapor via a single- or two-stage compressor, raising saturation temperature by 8–15 °C for reuse as heating steam.

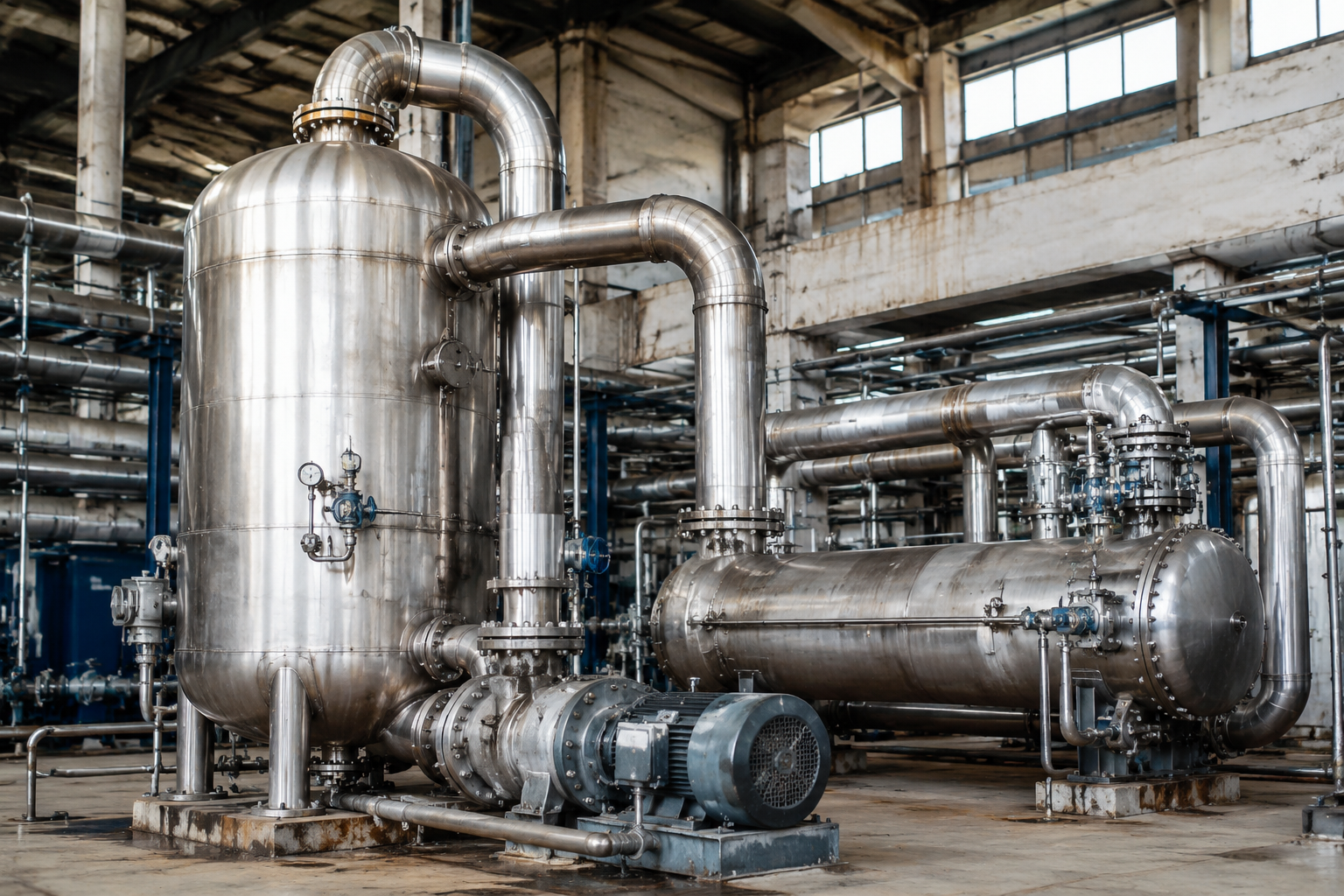

External circulation pump maintains tube velocity to suppress wall scaling; ΔT across the heater kept low to avoid tube-wall nucleation. Engineering reliability priority for high-TDS, high-COD and mixed-salt ZLD.

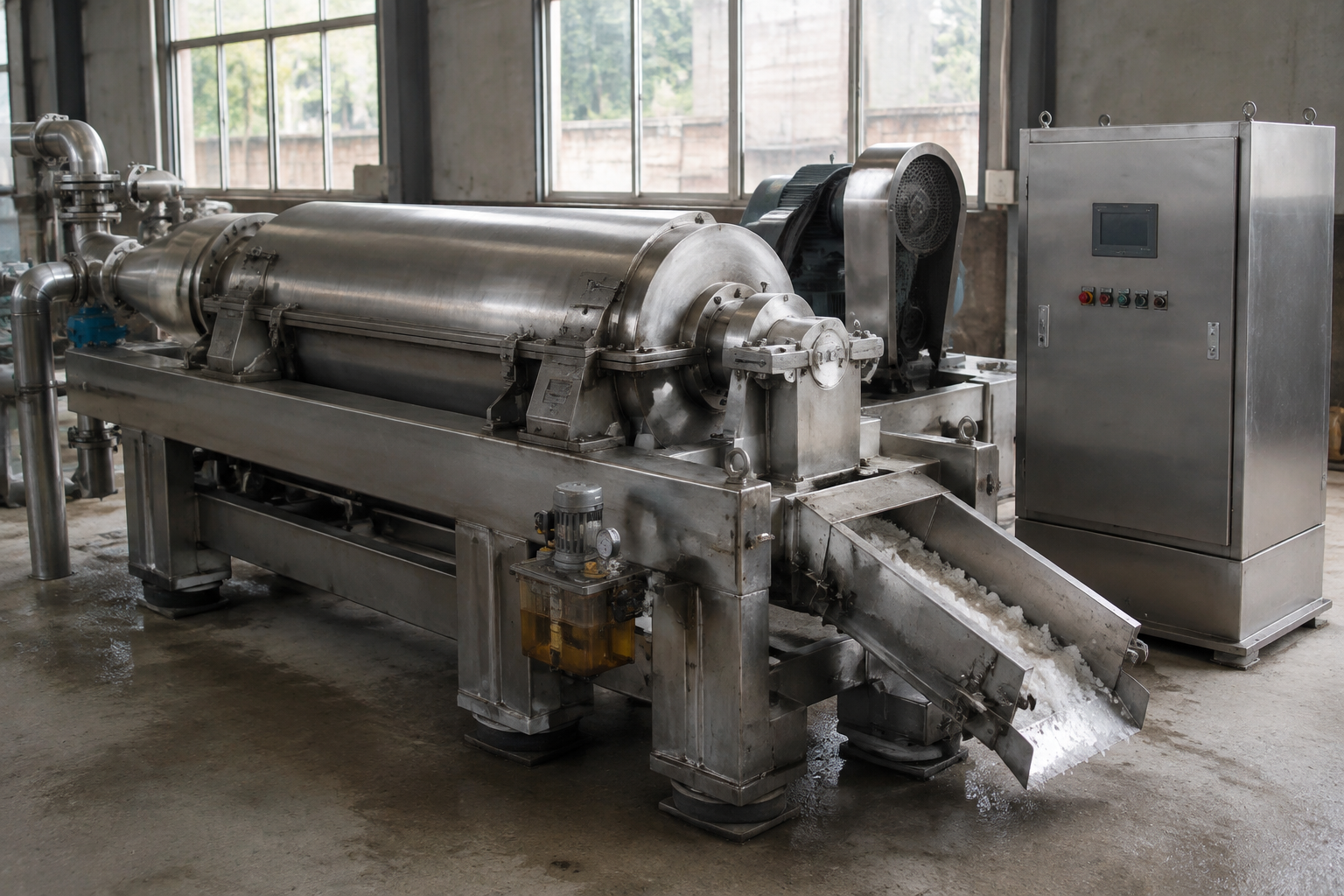

Pusher centrifuge for continuous NaCl / Na₂SO₄ duty; peeler or scroll centrifuge for batch or fine crystals. Wash stage reduces mother-liquor entrainment; integrated dryer (fluid-bed or conical) produces handleable salt cake.
Honest answers to the questions engineers and plant managers ask before specifying a ZLD system.
ZLD is typically justified when one or more of the following apply: (a) discharge limits on TDS, COD, ammoniacal nitrogen or heavy metals have dropped below what biological + membrane treatment can reach; (b) the plant has a mandated water-reuse target above 80%; (c) hazardous mixed-salt disposal exceeds 200 USD/t; (d) the site has no remaining discharge outlet (inland, arid, or regulated catchment). A 30-minute feed characterization review usually tells us whether a ZLD feasibility study is justified.
MVR-based ZLD evaporators typically consume 15–25 kWh per ton of water evaporated for low-BPE feeds (NaCl brine at moderate concentration), rising to 30–40 kWh/t at high BPE or for high-TDS feeds approaching saturation. Triple-effect systems consume 0.25–0.40 t steam per ton of water. The exact figure requires a heat-and-mass balance on your feed at target concentration — BPE, latent heat and compression ratio are the dominant variables.
Selective crystallization of NaCl and Na₂SO₄ is technically feasible when the feed sits in a workable region of the NaCl–Na₂SO₄–H₂O phase diagram at 25–100 °C. Achievable purity is typically 95–99% for the first salt, bounded by the eutectic composition and by trace organics and heavy metals. Sellable grade requires washing and centrate management — sellability is set by your offtake spec, not just by the crystallizer. Mixed-salt separation requires laboratory solubility and impurity profiling before any purity guarantee can be issued.
High-COD brines (pesticide, pharmaceutical, coal-chemical) commonly foam and scale because dissolved organics act as surfactants and because Ca²⁺ / Mg²⁺ / sulfate combinations exceed solubility during concentration. Mitigation combines (a) advanced oxidation (ozone, Fenton, electrochemical) to break biocidal and surface-active organics upstream, (b) softening to remove Ca²⁺ / Mg²⁺, (c) forced-circulation evaporators at 2–3 m/s tube velocity with ΔT ≤ 10 °C, (d) antifoam dosing controlled by level-sensor feedback, and (e) CIP cycles tuned to the fouling deposit (alkaline boil-out for organics, acid wash for carbonate / sulfate scale). The specific combination is driven by COD/TDS ratio, surfactant load and hardness profile.
The optimal number of effects is the result of a lifecycle-cost trade-off: each additional effect reduces steam consumption by approximately 1/n of the single-effect value (a 3-effect uses roughly 0.4 t steam / t water, a 4-effect roughly 0.3), but adds capital (effect shell, separator, pump, interconnecting piping) and increases total heat-transfer surface area. For most industrial wastewater ZLD applications, 3 effects provide the best lifecycle cost when steam is priced 25–40 USD/t; MVR typically beats 4+ effects once electricity is below 0.08 USD/kWh. The crossover is project-specific and requires a sensitivity analysis on utility prices and operating hours.
